Horizontal Ring Section Self-Balancing Multistage Centrifugal Water Pump ZD85-45X7P
Description
The ZD/ZDG/ZDF/ZDY/ZMD series pump is horizontal multistage section centrifugal pump, with the features of high efficiency', wide performance range, steady and safety operation, low noise and easy installation.
It can deliver the clean water, sewage water, corrosive liquid, hot water, seal water and oil liquid by selecting different mater of flow passage parts. It is widely applied to industrial water supply and discharge, high building water supply, fire fighting applications, mining water discharge, long distance water transmit, and boiler water feeding, etc.

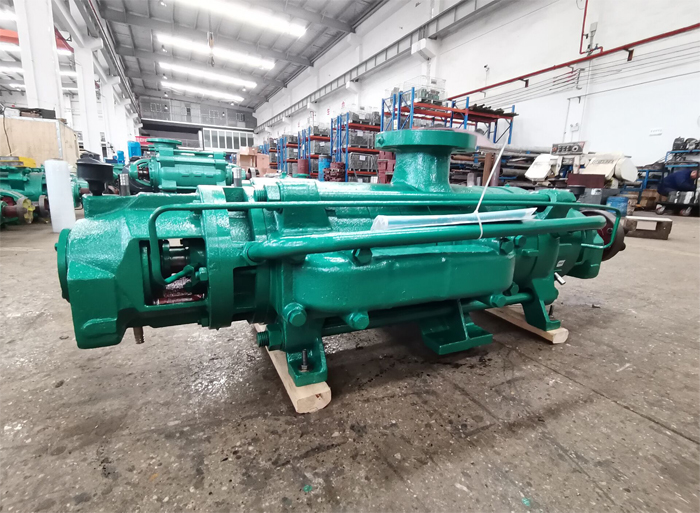

ZD series self-balancing multistage ring section centrifugal water pump is designed to remove the mechanical balance drum, balance disc, balance socket and similar part, but achieve the balancing function by reverse circulation water pipe. Such external bypass piping is designed for water flowing into the end of the pump from the suction side, and then reversely flow back to the discharge section in the middle, which makes the water flowing from both sides of the discharge section. It will balance the axial thrust caused by the high pressure impeller from both sides and escape the mechanical wears out as well as overloaded axial force of the traditional multistage pump, and ensure the stability and endurability of the pumpset.
Design Features:
* With symmetrically arranged impeller rotor components, axial forces generated by all levels of symmetrical impellers forces offset each other and automatic balancing of huge axial thrust within pump cavity can be realized without the balance disc structure.
* Unique throtting and pressure reduction devices, odd-level balancing device.
* Using advanced hydraulic model, independent R&D enery efficient products, Good centering of impeller and guide vane channel and efficiency will not significantly drop as balancing disc wears and rotor components move forward. No leakage of balancing water reduces loss of volume and improves pump efficiency and pump efficiency is on average 2-5% higher than normal pumps.
* By canceling easy-failing balancing disc, pump reliability is greatly improved, maintenance frequency and maintenance cost are reduced.
Parameters
| Flow Capacity | 55-100 m3/h | Delivery Head | 117-510 m |
| Inlet/Outlet Dia. | 100mm/100 mm | Working Pressure | ≤ 7.65 MPa |
| Liquid Temperature | 0 - 120 ℃ | Driven By | Electric Motor / Diesel Engine |
| Seal Type | Mechanical seal / Gland packing | Liquid | Clean water or similar |
| Material of Construction | Cast Iron / Cast Steel / S.S304 / S.S316 / Duplex S.S2205 |
Main Parts Configuration
The pump could be applied to transfer different kinds of liquid by customized wet parts, here followed our recommendation of main configuration:
| Parts Name | Clean Water | Sewage | Hot Water | Corrosive Liquid | Oil Liquid |
| Pump Body | Cast Iron | Ductile Iron | Cast Steel/S.S304 | S.S304/S.S316/S.S2205 | S.S304/S.S316 |
| Shaft | Cast Iron | S.S420 | S.S420/42CrMo | S.S630 | S.S420/40Cr |
| Shaft Sleeve | Carbon Steel | S.S420 | S.S304 | S.S316/S.S630/S.S2205 | S.S304/S.S316 |
| Impeller | Cast Iron | Ductile Iron | Cast Steel/S.S304 | S.S304/S.S316/S.S2205 | S.S304/S.S316 |
| Wearing Ring | Cast Iron | Ductile Iron | Cast Steel/S.S304 | S.S304/S.S316/S.S2205 | S.S304/S.S316 |
| Bearing | China Make/NSK/SKF/Customized |
| Seals | Mechanical Seals/Gland Packing Seals |
